Mattress Tape Edge Machines FB Series
FB Series Tape Edge Machines deliver high-speed sewing for all mattress types with exceptional flexibility and precise tape edge application. Built with ergonomic design combining operator comfort with maximum efficiency for reliable manufacturing productivity across any mattress style.
Download FB3 PDF
Download FB5 PDF
Customer Service
Share your contact information – our engineers respond 24/7.
FB3 Semi-Automatic: Small Investment, Big Return
120 Mattresses/Per Shift
Customer Service
Share your contact information – our engineers respond 24/7.
FB5 Auto-Flipping: High-efficiency & Intelligent
150 Mattresses/Per Shift
Customer Service
Share your contact information – our engineers respond 24/7.
WHAT WE OFFER
Product Features Overview

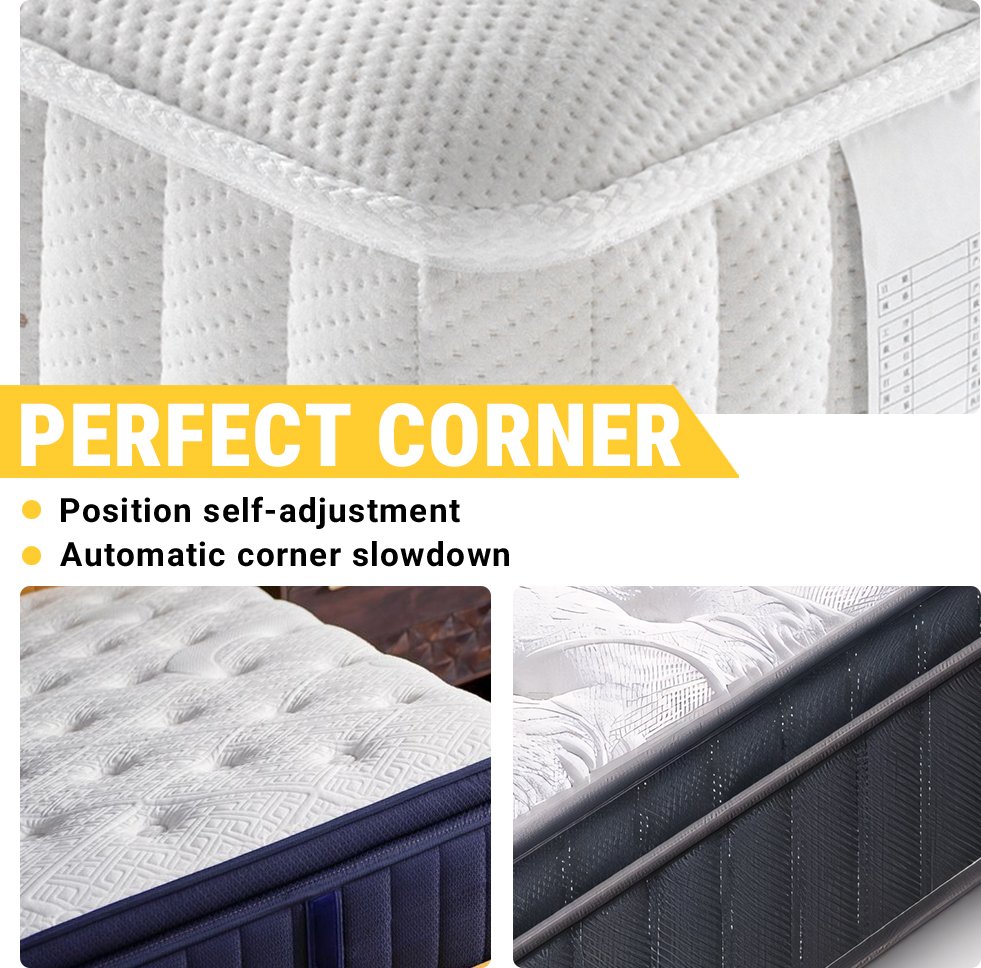

Perfect Corner
Automatic corner slowdown & Position self-adjustment
Customer Service
Share your contact information – our engineers respond 24/7.

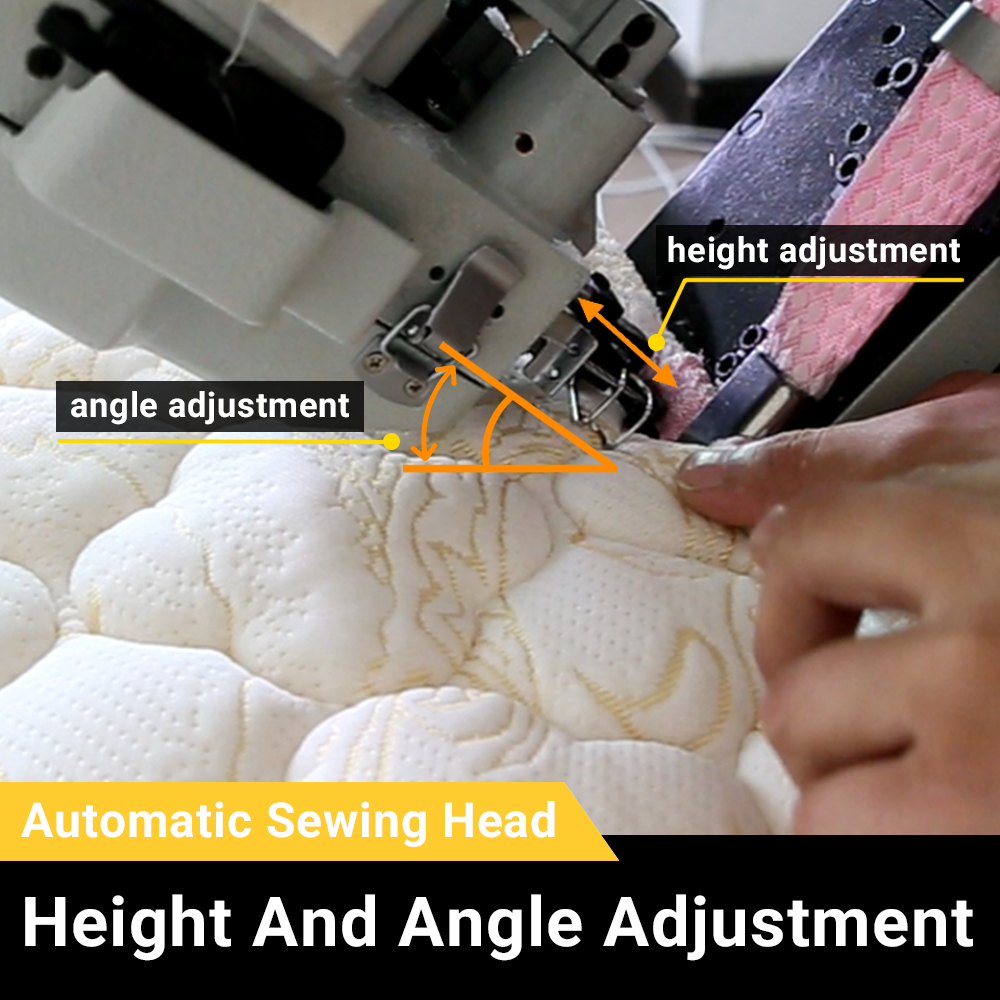

adjustable sewing head
Automatic sewing head height and angle
(slope) adjustment
Customer Service
Share your contact information – our engineers respond 24/7.

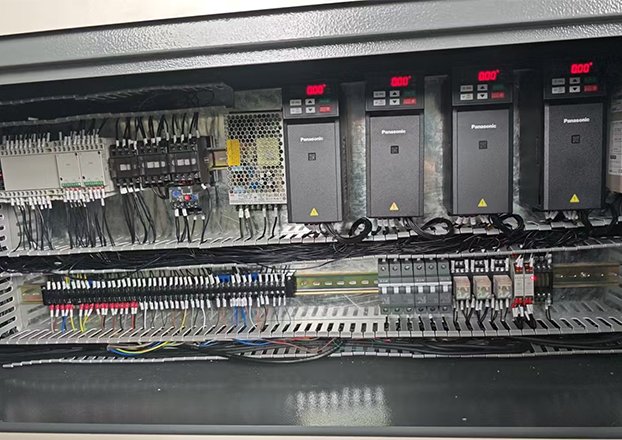

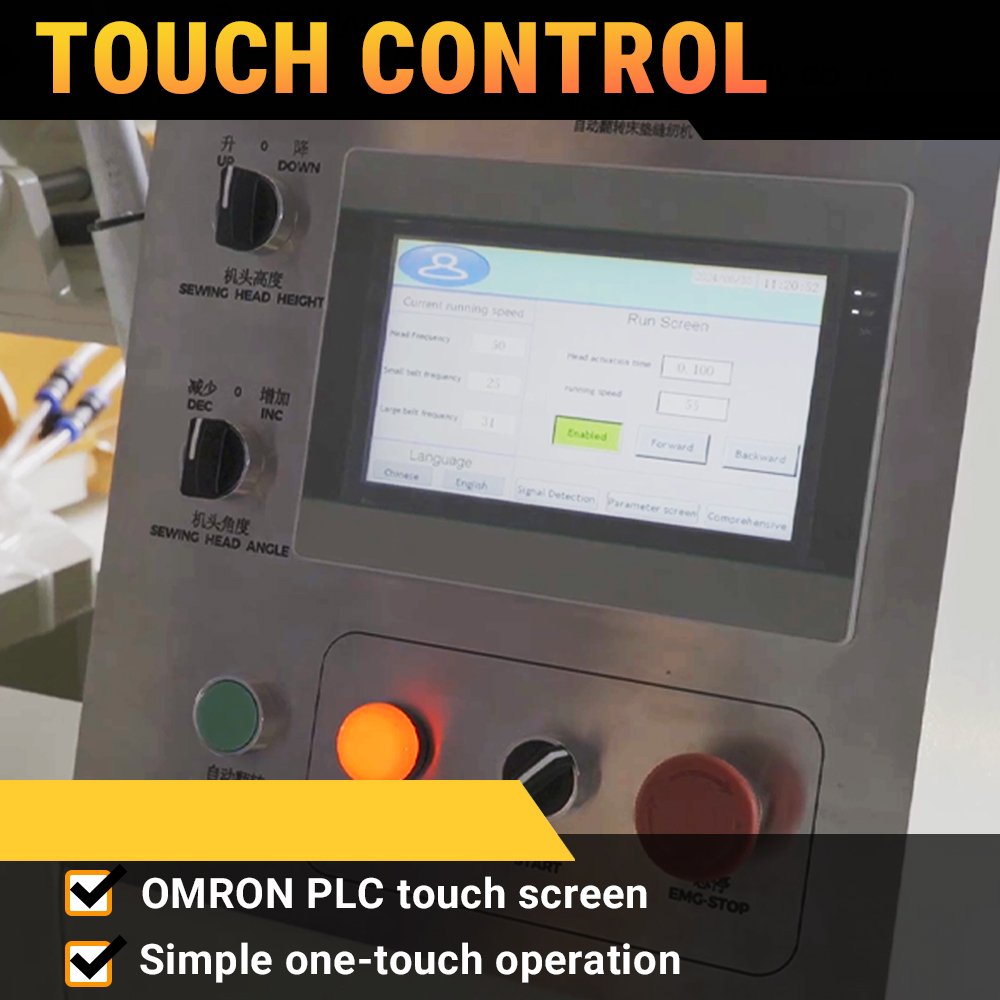

Touch Control
OMRON PLC touch screen & Simple one-touch operation
Customer Service
Share your contact information – our engineers respond 24/7.
Auto-Flip (FB5)
No operator handling & Automatic repositioning
Customer Service
Share your contact information – our engineers respond 24/7.

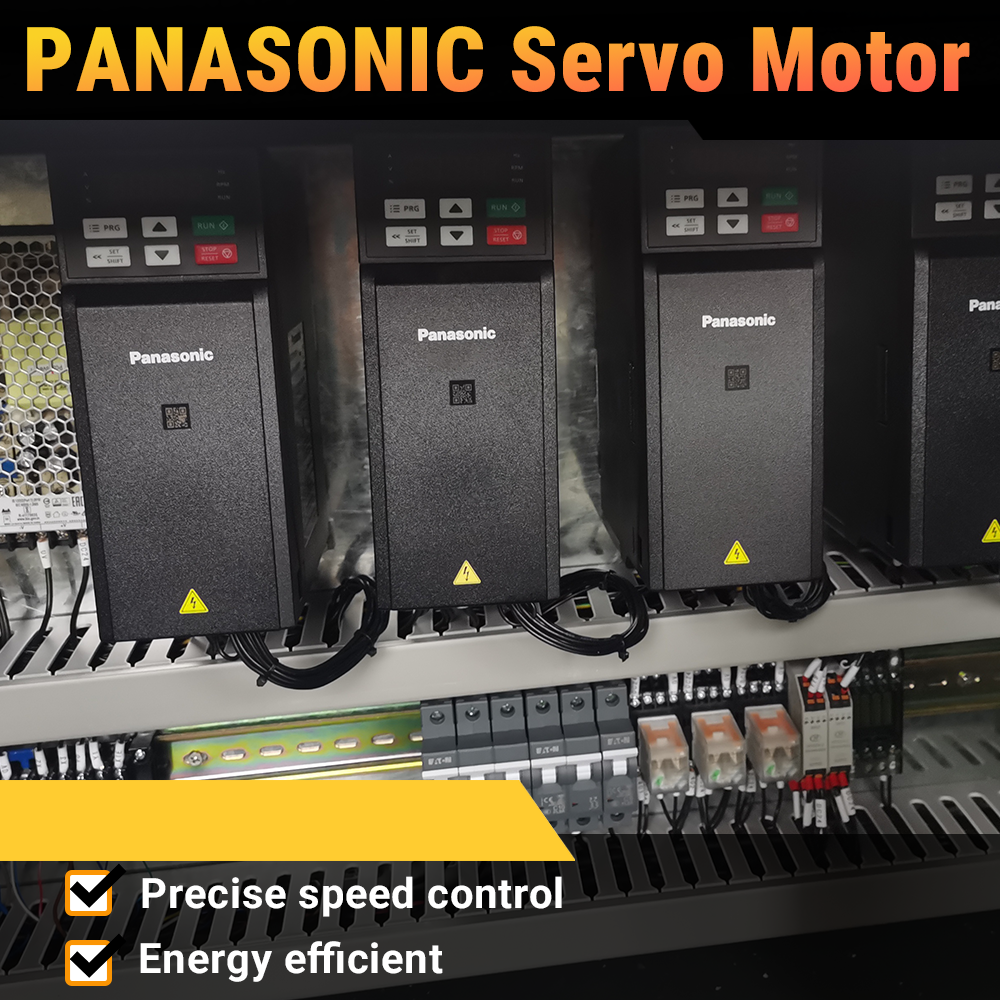

Servo Motor
Precise sewing control & Consistent stitch quality
Customer Service
Share your contact information – our engineers respond 24/7.

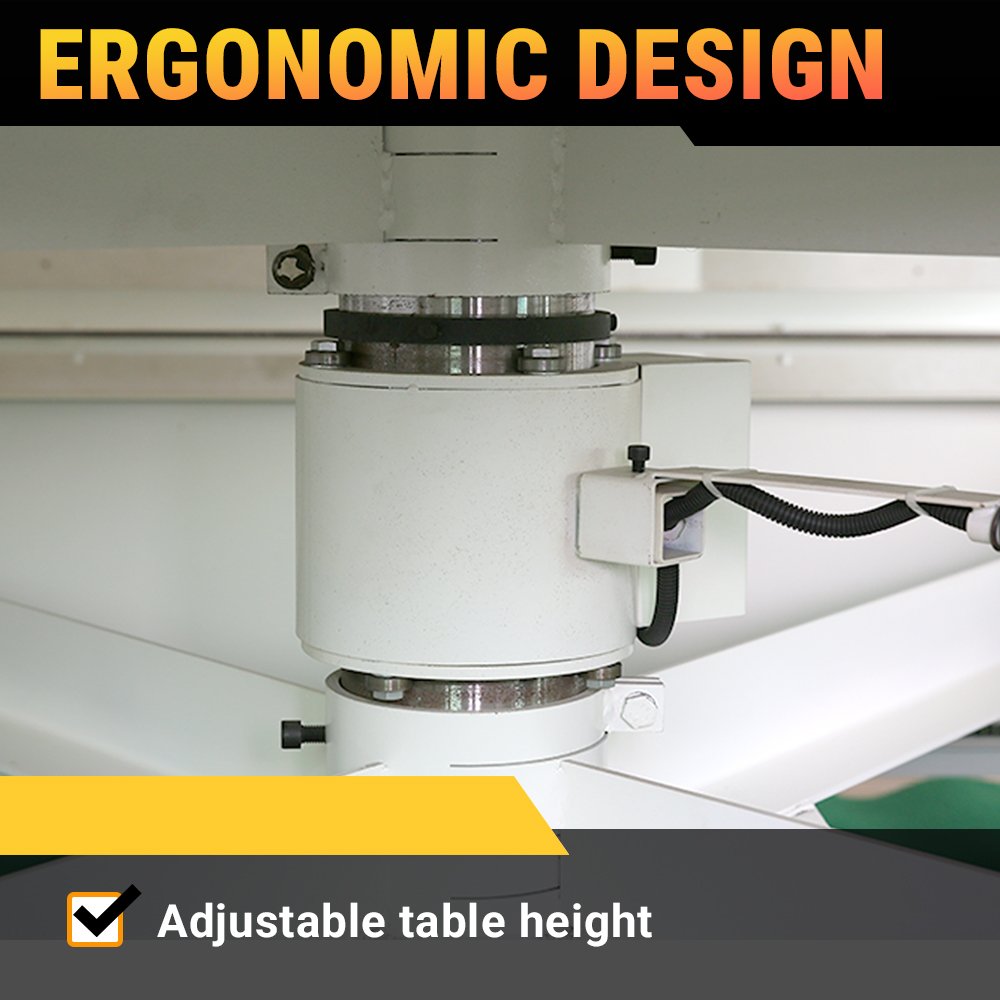

Ergonomic Design
Ergonomic Design with Adjustable table height
Customer Service
Share your contact information – our engineers respond 24/7.
Mattress Tape Edge Machines FB Series

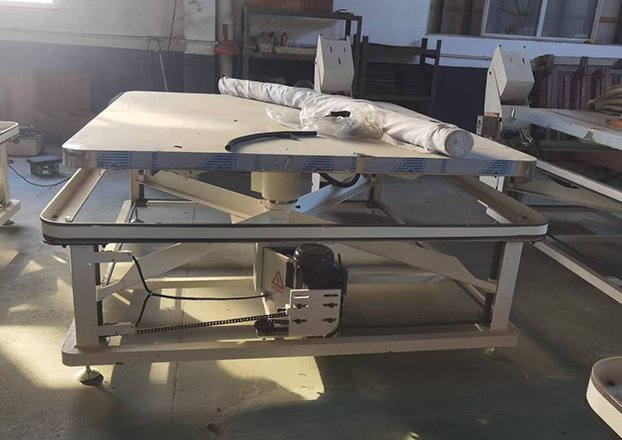

Semi-Automatic
FB3
| Machine Type | Table Type |
|---|---|
| Lay Out | 2000*1800 mm |
| Mattress Size | min 60x120 cm max 200x180 cm |
| Mattress Height | 50-500mm(2” to 20”) |
| Capacity | 120 mattresses/8 hours |
| Max Sewing Speed (rpm) | 3,000 rpm |
| Max Presser Footlift (inch) | 340 mm |
| Auto Slow-down at Corners | ✔ |
| Electric Lifting Table | ✔ |
| Heavy Duty Auto-Flip | × |
| Air Supply | |
| Power Requirements | 220V IP 50-60HZ |
| Power Consumption | 1.2KW |
| Total Weight | 680kg |
| Guaranty | 1 Years |
| Quality Standard | CE |

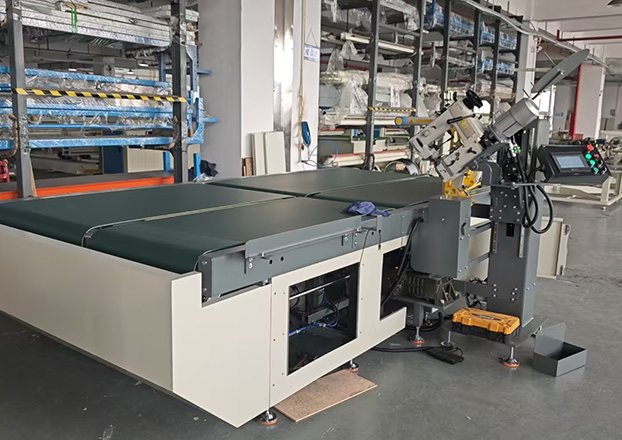

Auto-Flipping

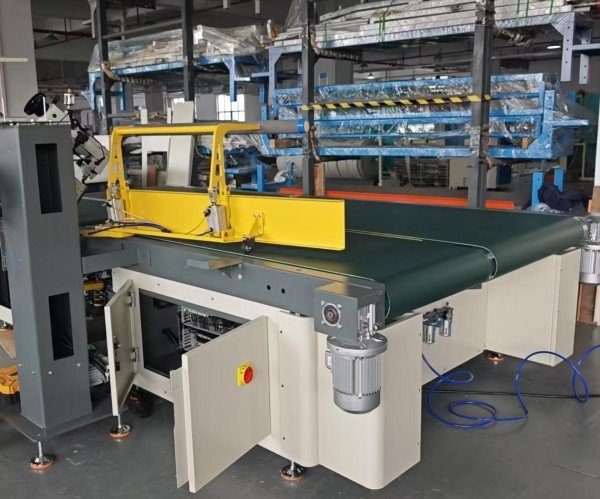

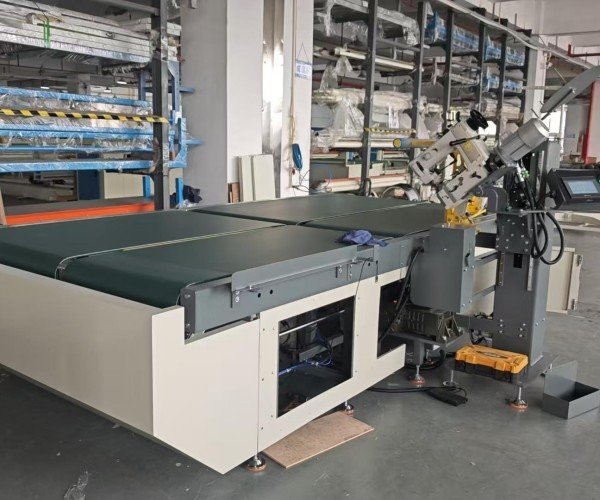

FB5
| Machine Type | Conveyor Type |
|---|---|
| Lay out | 4050*3000*1950 mm |
| Mattress Size | min 60x120 cm max 200x210 cm |
| Mattress Height | 50-480mm(2” to 19”) |
| Capacity | 150 mattresses/8 hours |
| Max Sewing Speed (rpm) | 3,000 rpm |
| Max Presser Footlift (inch) | 340 mm |
| Auto Slow-down at Corners | ✔ |
| Electric Lifting Table | ✔ |
| Heavy Duty Auto-Flip | ✔ |
| Air Supply | 0.6-0.8Mpa |
| Power Requirements | 3-Phase380V,50HZ |
| Power Consumption | 3KW |
| Total Weight | 1300kg |
| Guaranty | 1 Years |
| Quality Standard | CE |

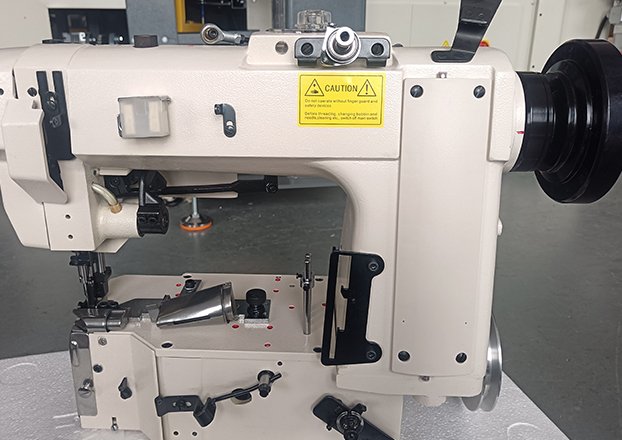

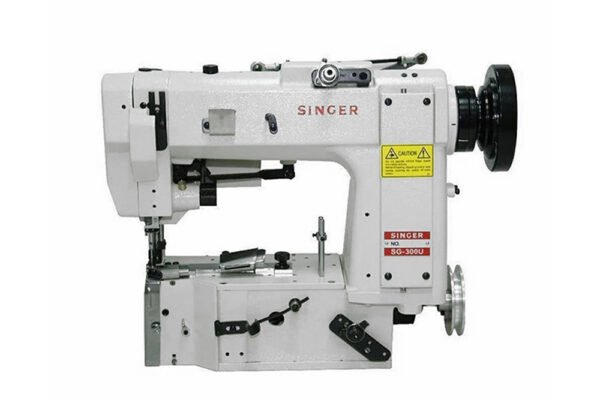

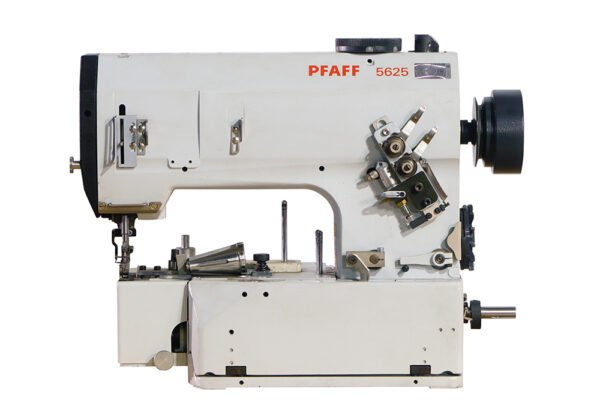

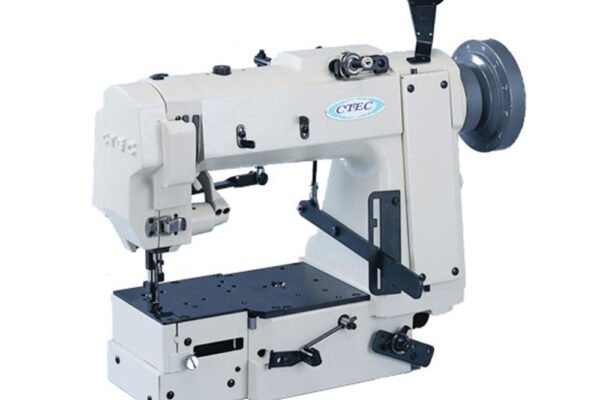

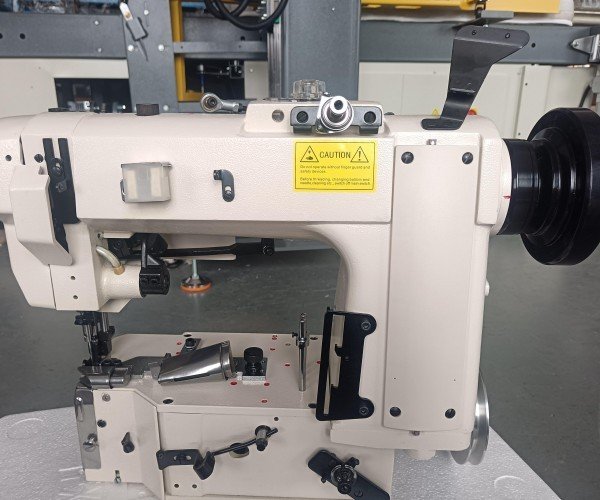

*Optional Chain Stitch Sewing Head
*We offer customization options to meet specific production needs.
Testimonials
What Our Customers Say
Elevate Mattress Edge Quality in Portugal with GENMAX FB5
Meeting Portugal’s Mattress Edge Finishing Demands
Mattress manufacturers in Portugal face key challenges i...
How a Mexican Mattress Startup Boosted Production and Quality with GENMAX FB3
Overcoming Startup Challenges in Mattress Edge Finishing
A new mattress company in Mexico faced common star...
Ready to see similar improvements in your facility? Click for a no-obligation consultation.
Customer Service
Share your contact information – our engineers respond 24/7.
Packaging And Shipping
Most Popular Questions
How does the FB3 compare to fully automatic tape edge machines?
The FB3 is semi-automatic, requiring more operator involvement than fully automatic models like the FB5. However, it still offers significant improvements over manual tape edge machines with its electric lift table, automatic corner slowdown, and ergonomic design.
How is the FB5 controlled?
The FB5 uses a PLC program control system with a touchscreen human-machine interface that allows for precise adjustments and operation.
Can stitch length be adjusted?
Yes, the FB5 offers adjustable stitch length with precise coordination between the sewing head and conveyor speed for consistent stitching quality.
What is the warranty period for your Tape Edge Machines?
We provide a standard warranty period of 12 months from the date of installation, covering any manufacturing defects and ensuring customer satisfaction.
What is the lead time for delivery after placing an order?
The lead time typically ranges from 30 to 90 days, depending on the model and order specifications. We will provide an estimated delivery date upon order confirmation.
Do you provide after-sales support?
Yes, we offer extensive after-sales support, including technical assistance, maintenance services, and access to spare parts to ensure the longevity of your Tape Edge Machines.
