Lock Stitch Shuttle Multi Needle Quilting Machine

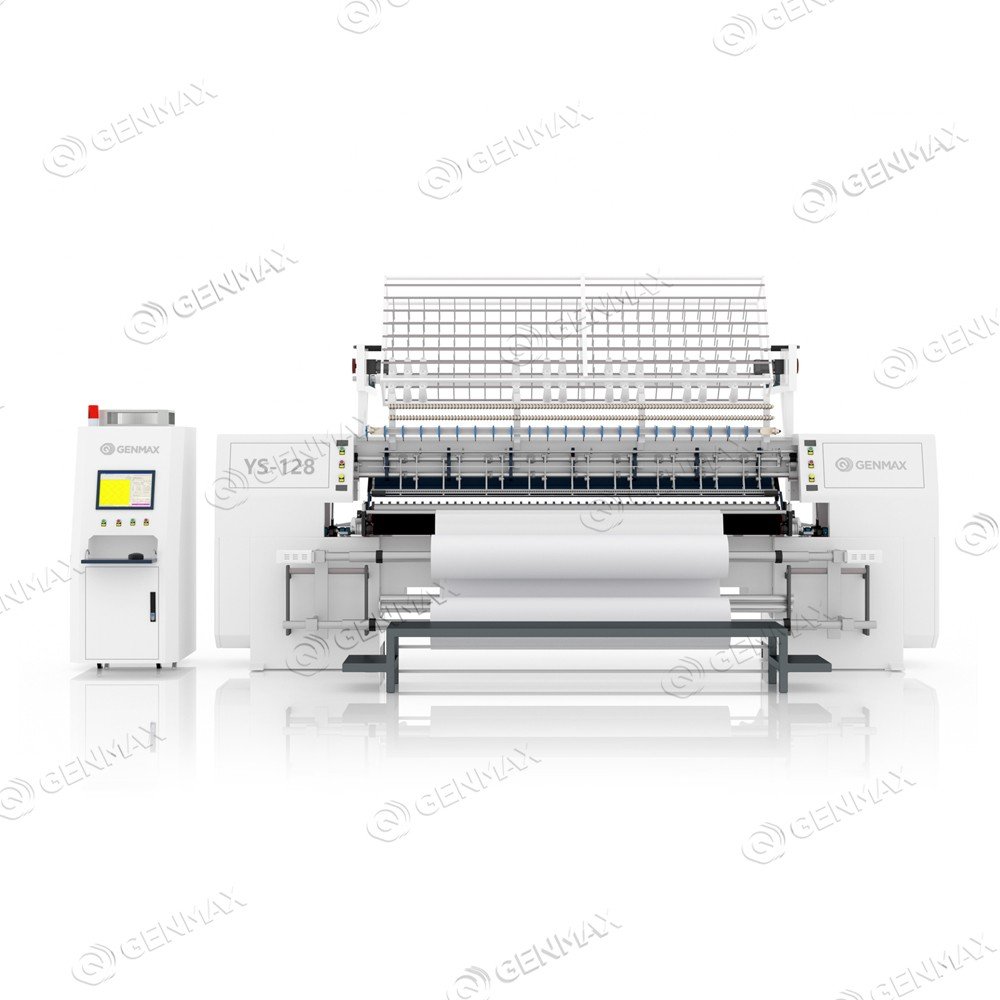

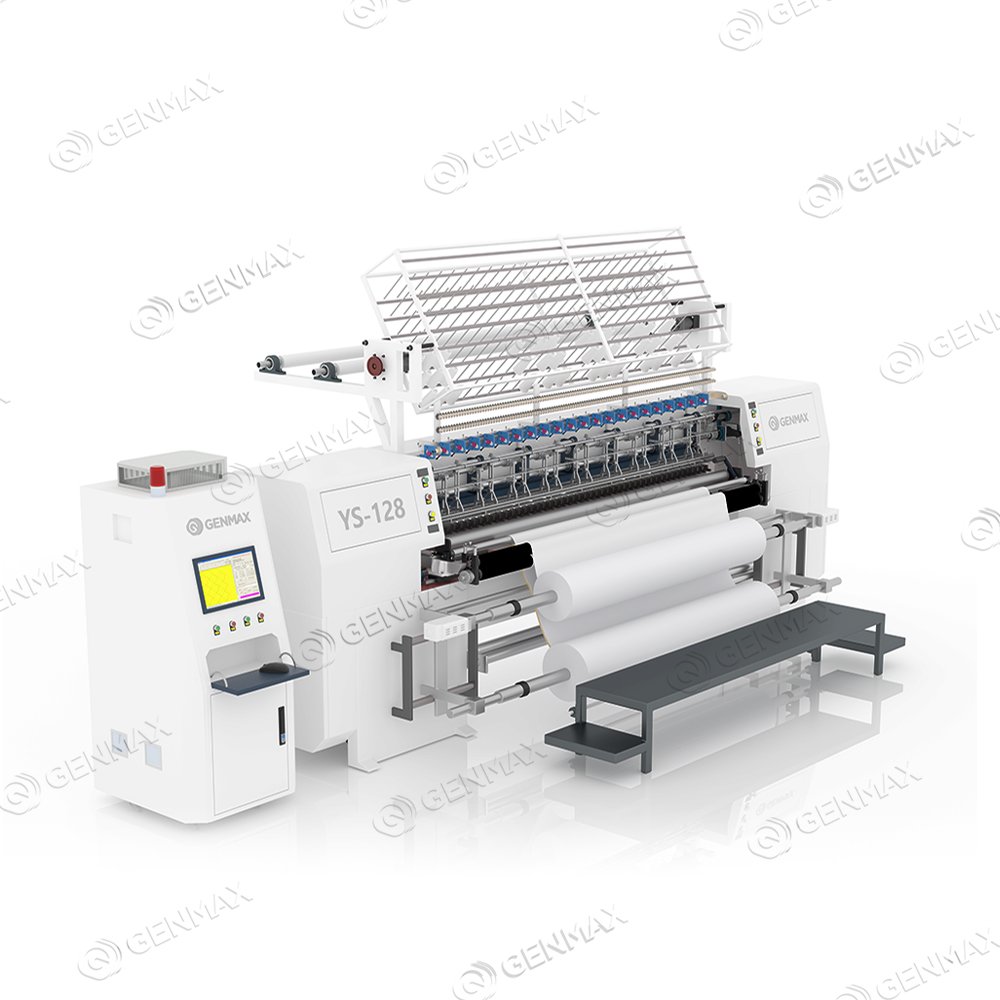

The YS Series Shuttle Multi Needle Quilting Machine is engineered for manufacturers seeking high-speed, precision quilting for premium mattresses, home textiles, and upholstery. Combining advanced automation, robust construction, and user-friendly controls, the YS model delivers exceptional productivity and consistent, beautiful results.
Download PDF
Customer Service
Share your contact information – our engineers respond 24/7.
YS-128"
YS-64"
WHAT WE OFFER
Lock Stitch Shuttle Quilting Machine Features Overview
Lock Stitch Shuttle Quilting Machine Technical Specification
|
MODEL |
GM-YS-64"-3-4.5/5/6 |
GM-YS-96"-3-5/6 |
GM-YS-128"-2-3/6 |
|---|---|---|---|
|
Dimension(L*W*H)(mm) |
3800*1200*1800 |
4800*1200*1800 |
5700*1200*1800 |
|
Quilting Width(mm) |
1650mm |
2450mm |
3300mm |
|
The Number of Needle Rows |
3 |
4 |
2/3 |
|
Space Between Needle Rows |
3"+1.5"/3"+2"/3"+3" |
3"+2"/3"+3" |
3"/3"+3" |
|
X-axis Movement Displacement |
228.6mm/228.6mm/304.8mm |
304.8mm |
254/304.8mm |
|
Thickness of Quilting |
25mm |
25mm |
25mm |
|
Stitch Length |
2-12mm |
2-12mm |
2-12mm |
|
Speed of Operation(m/hour) |
20-200 |
20-200 |
20-200 |
|
Needle Bar Type |
Double Bar |
Double Bar |
Double Bar |
|
Model of Needle |
16# 19# |
16# 19# |
16# 19# |
|
Quilting Speed(r/min) |
100-1000 |
100-1000 |
100-1000 |
|
Voltage(AC) |
380/220V,3P,50/60HZ |
380/220V,3P,50/60HZ |
380/220V,3P,50/60HZ |
|
Total Power |
3.5KW |
5.5KW |
7.5KW |
Testimonials
What Our Customers Say
Elevate Mattress Edge Quality in Portugal with GENMAX FB5
Meeting Portugal’s Mattress Edge Finishing Demands
Mattress manufacturers in Portugal face key challenges i...
How a Mexican Mattress Startup Boosted Production and Quality with GENMAX FB3
Overcoming Startup Challenges in Mattress Edge Finishing
A new mattress company in Mexico faced common star...
Ready to see similar improvements in your facility? Click for a no-obligation consultation.

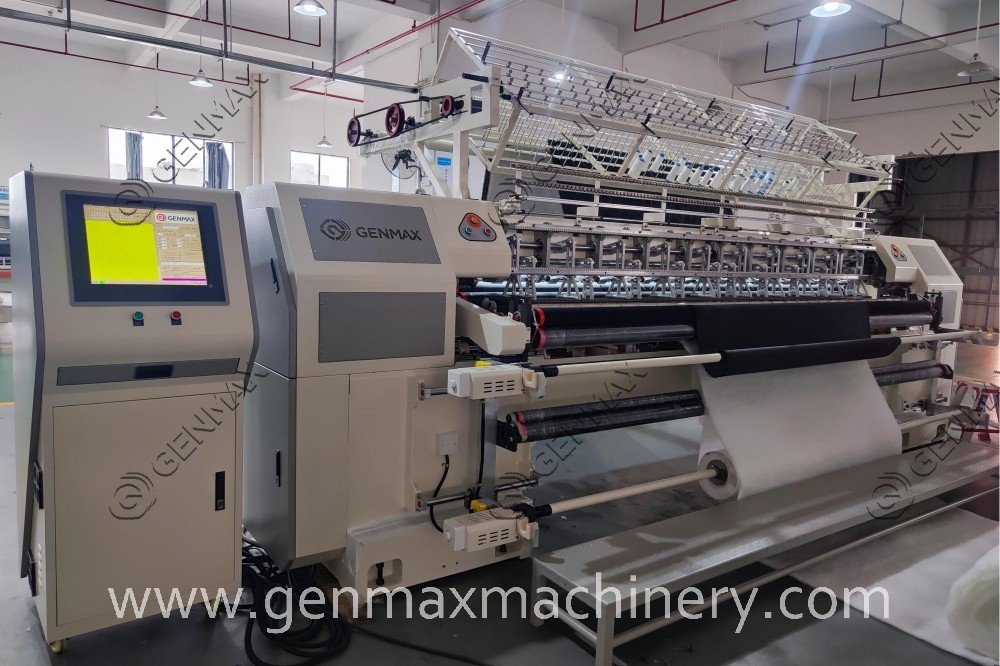

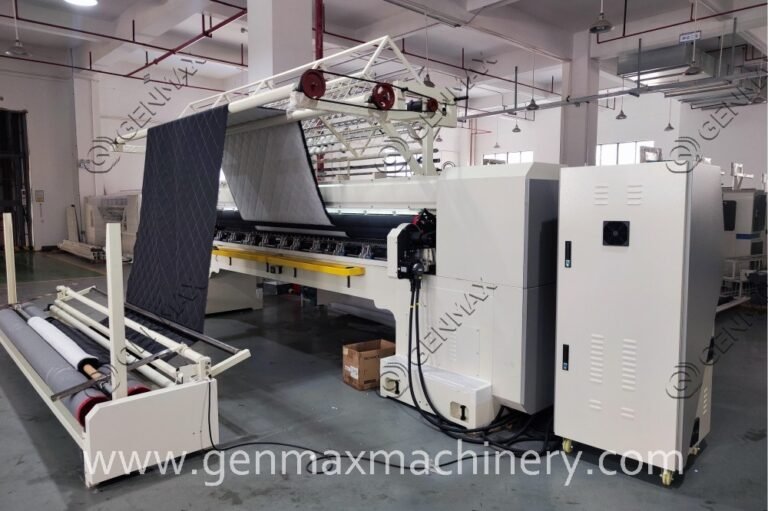

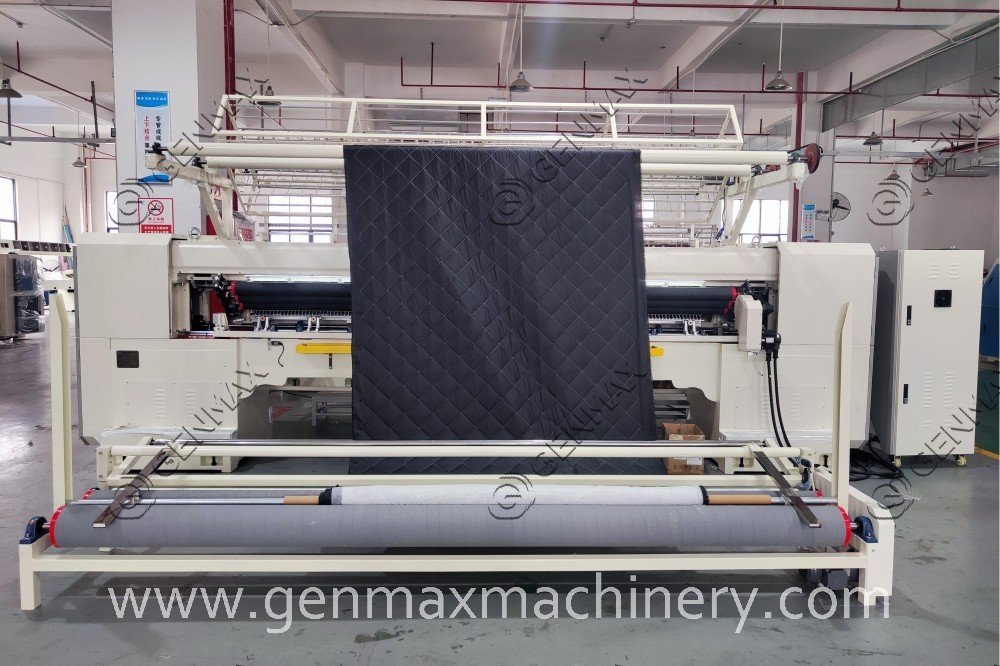

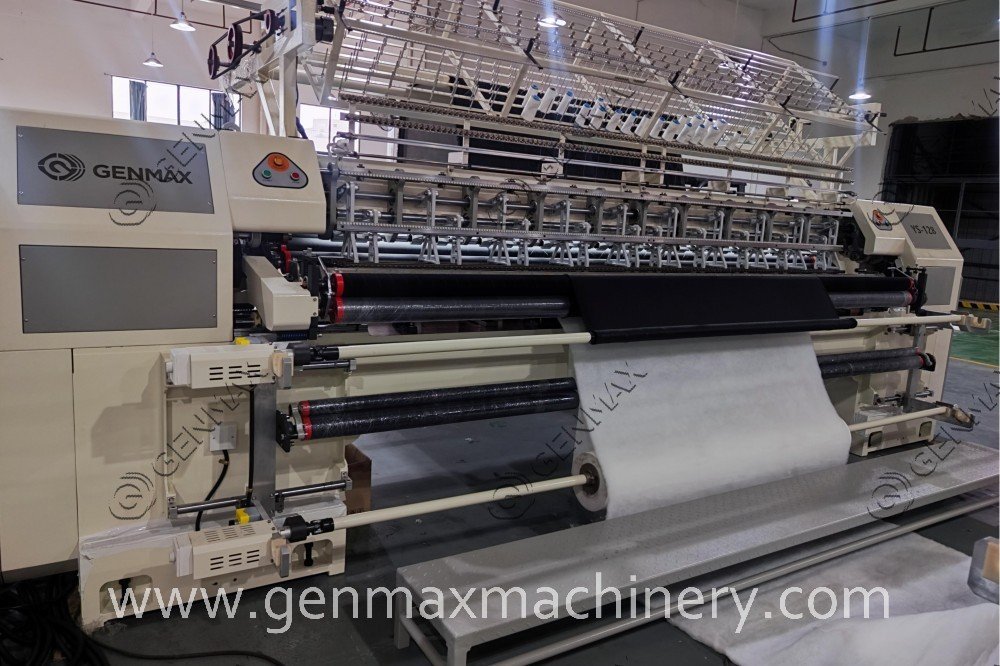

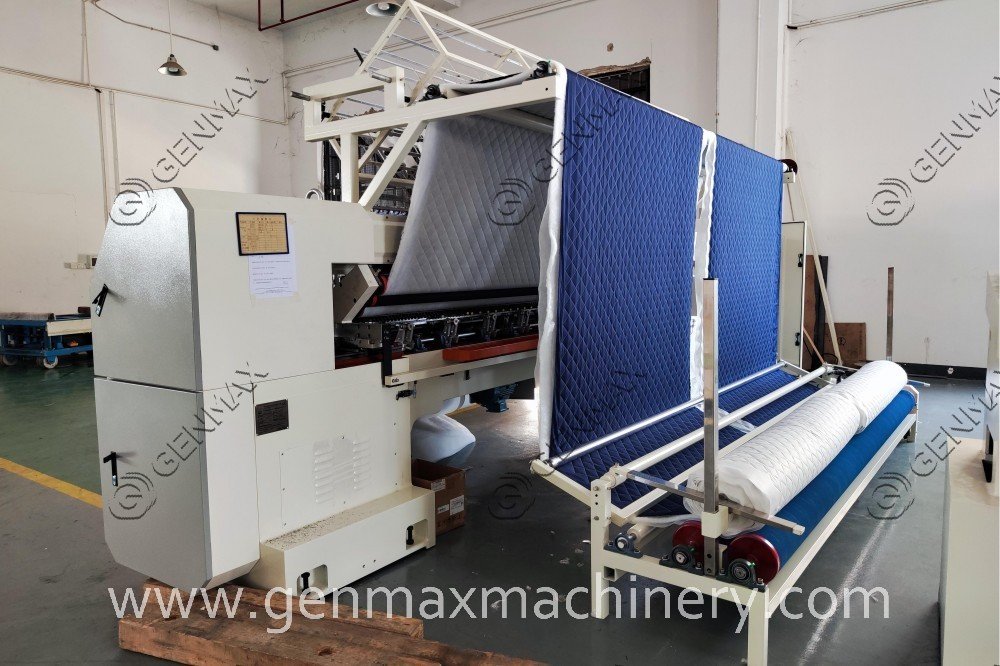

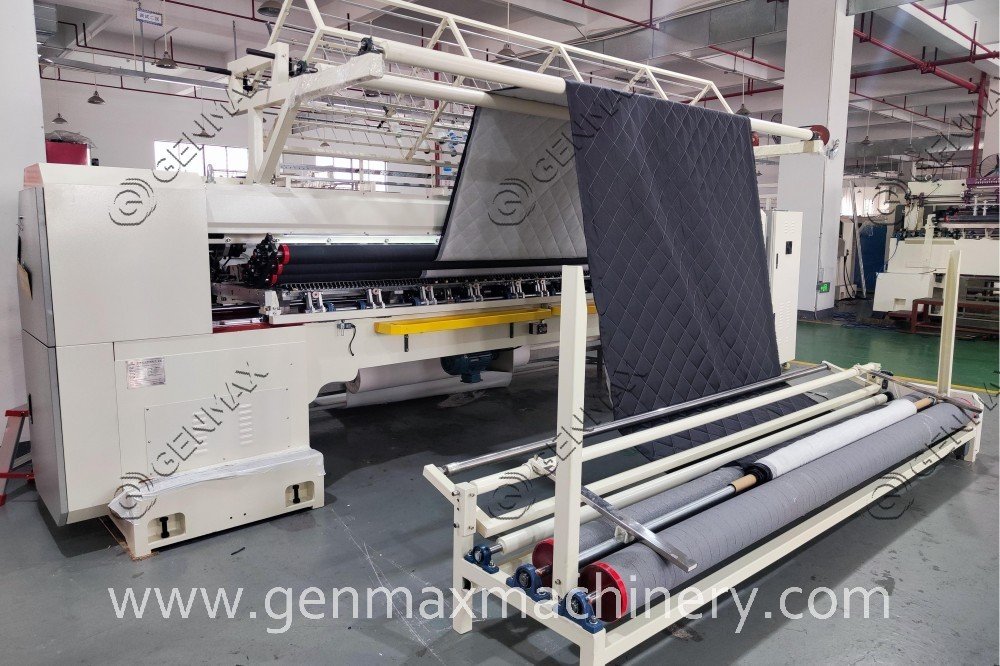

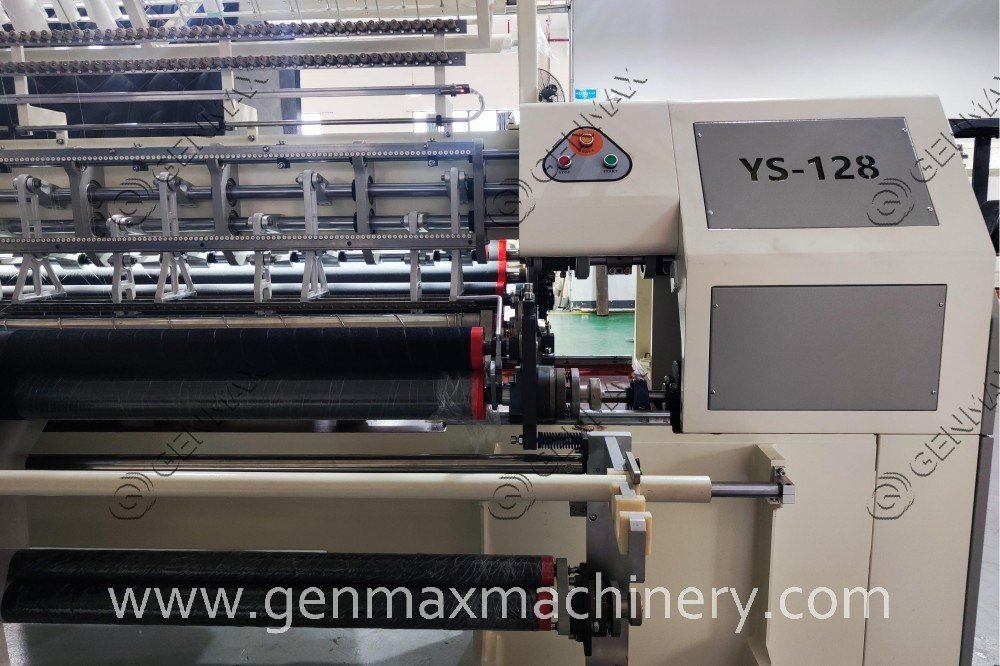

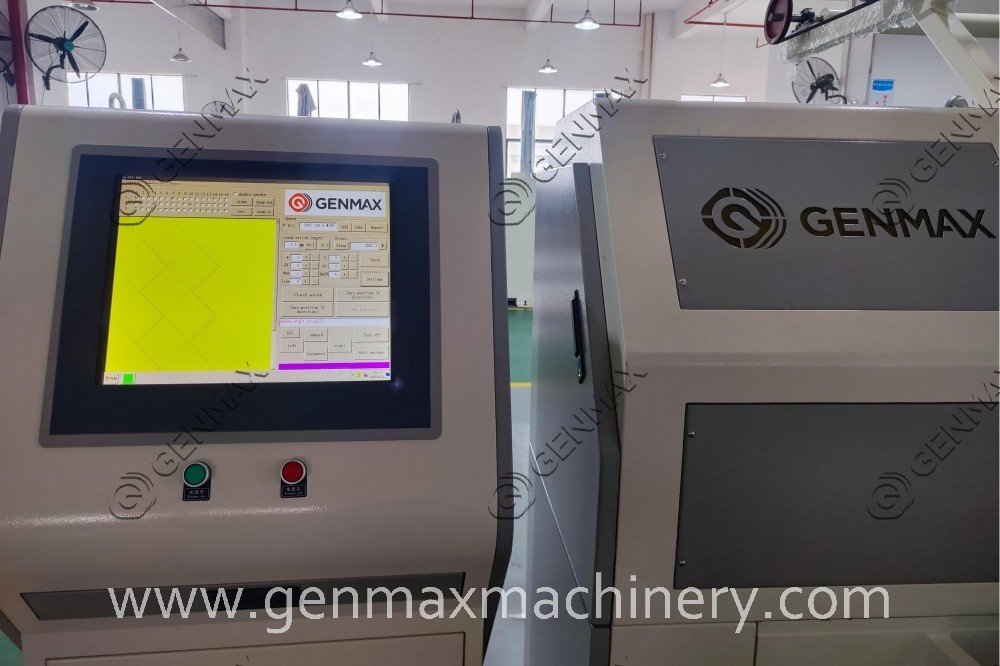

Packaging And Shipping
Most Popular Questions
What is the maximum speed of the YS model?

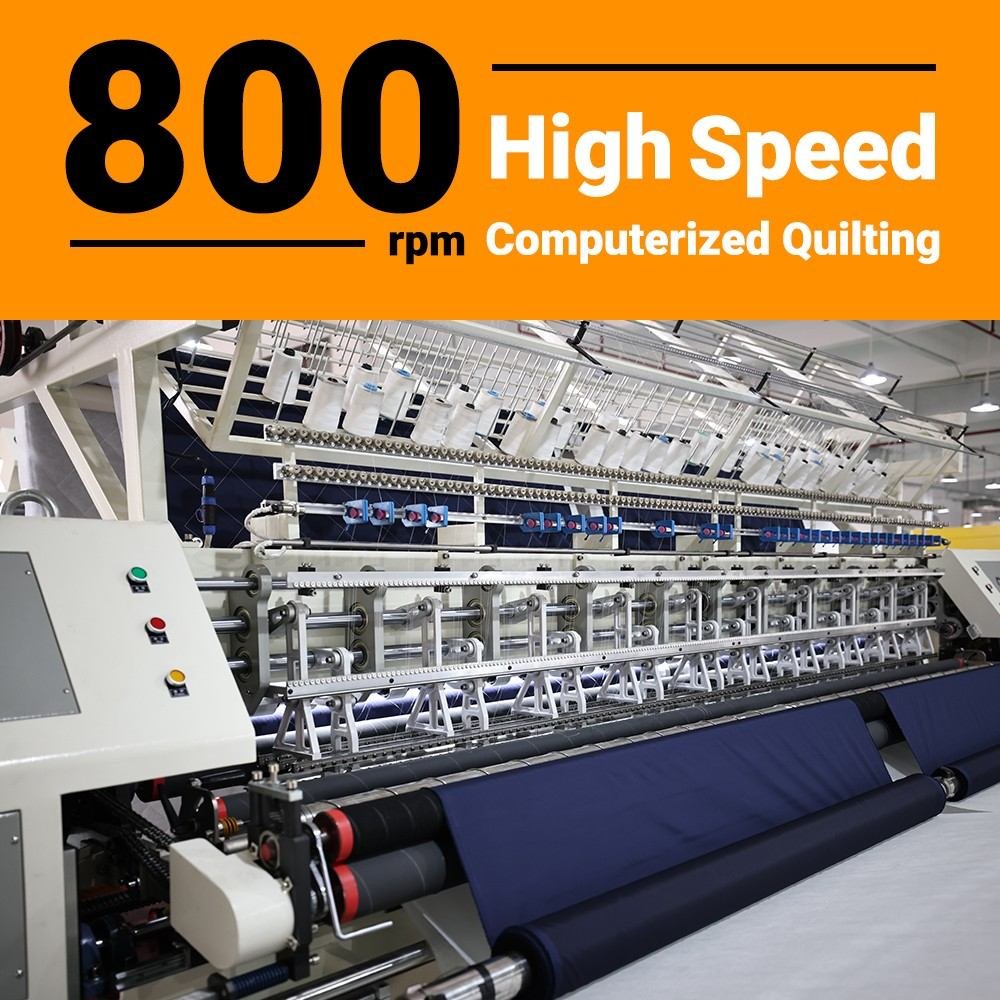

The machine operates at up to 800rpm, controlled by computer for stable, high-speed quilting.
Does the machine require oiling?
No, the aluminum alloy needle bar frame is oil-free, which prevents fabric contamination and reduces maintenance.
Can I use custom patterns?

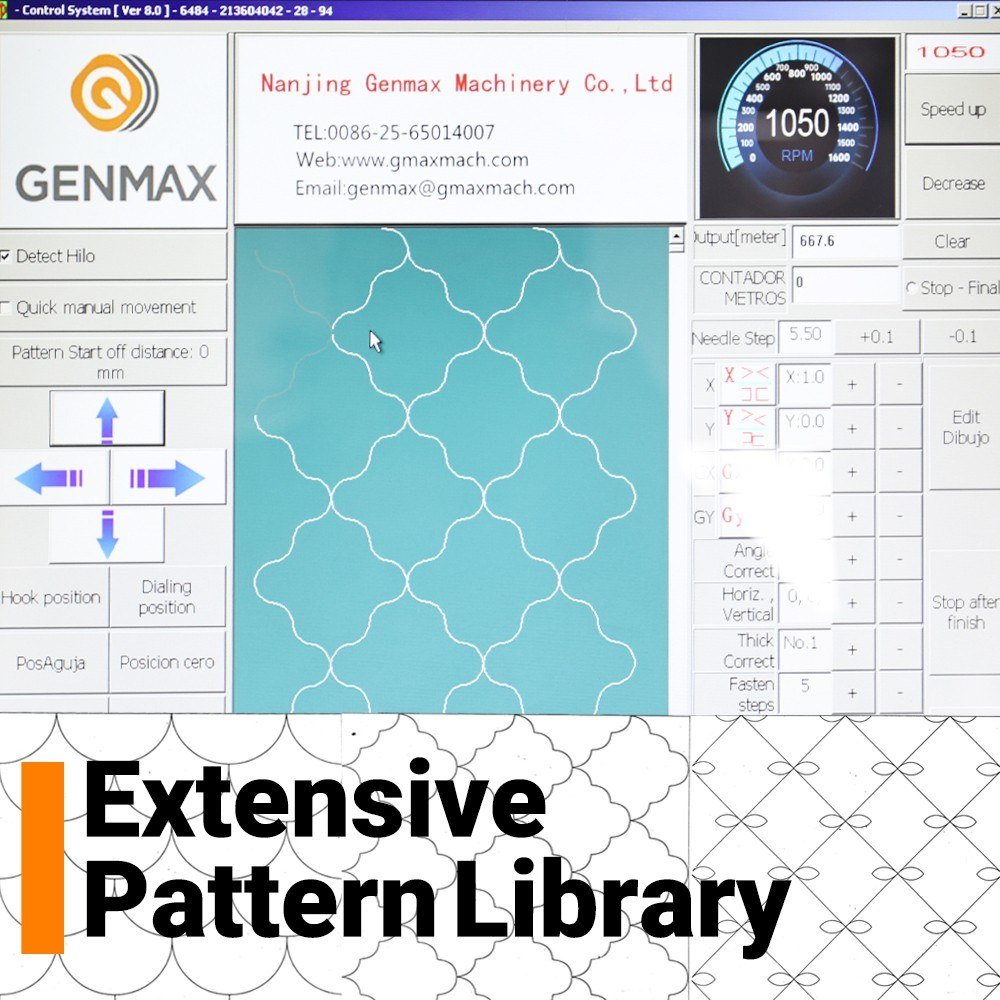

Yes, over 200 patterns are built-in, and you can upload custom designs via CAD.
What is the maximum quilting thickness?
The YS model can quilt materials up to 3cm thick.
How does the machine ensure safe operation?
It features infrared induction safety and automatically stops when the upper thread breaks.
Why Choose Model YS?
- Stable high-speed quilting with low noise and vibration
- Oil-free, durable needle bar for clean, low-maintenance operation

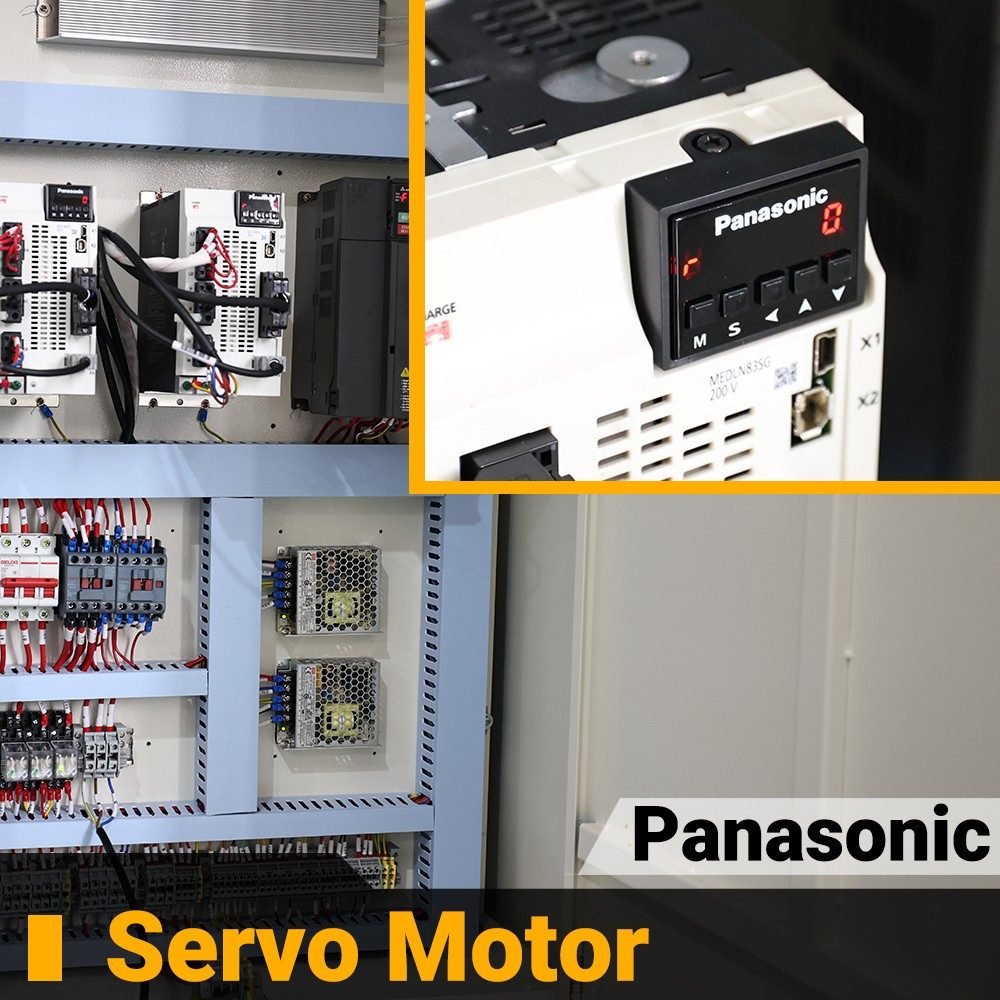

- Advanced servo and frequency drive for precision movement

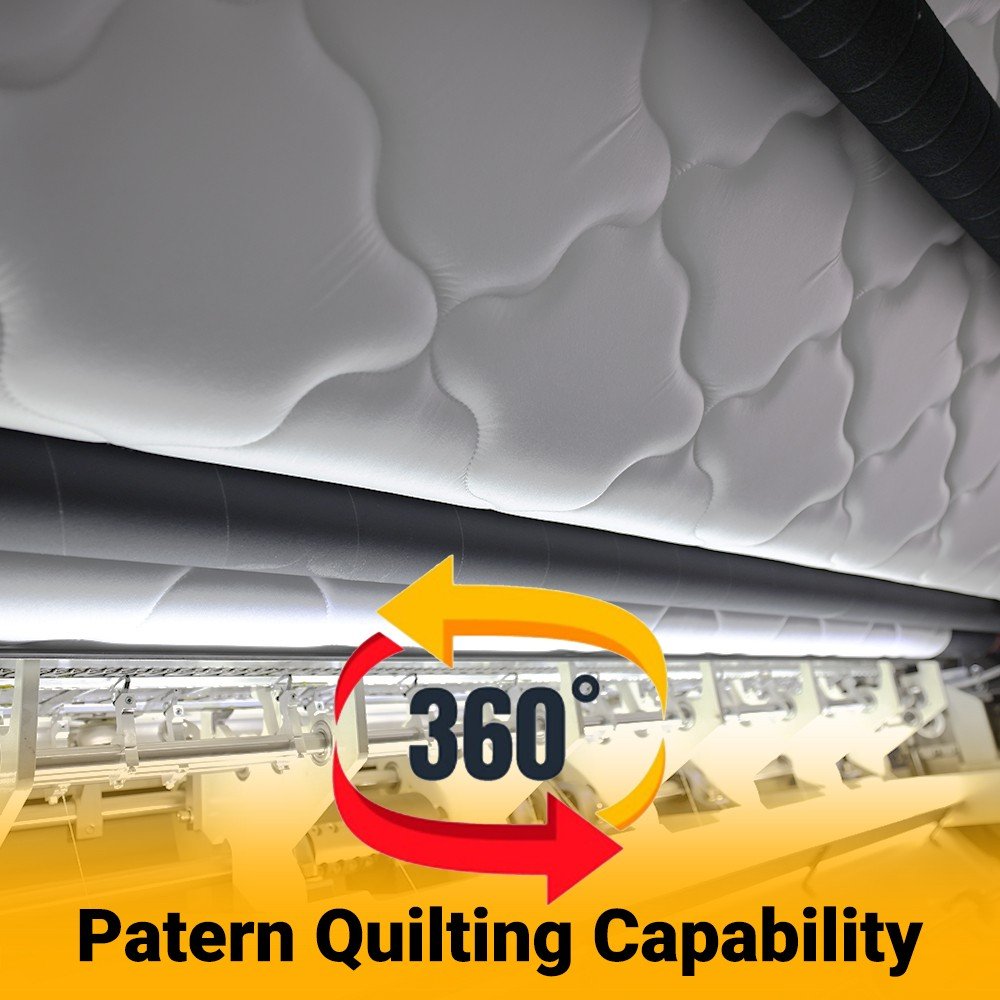

- Supports complex, large, and custom patterns

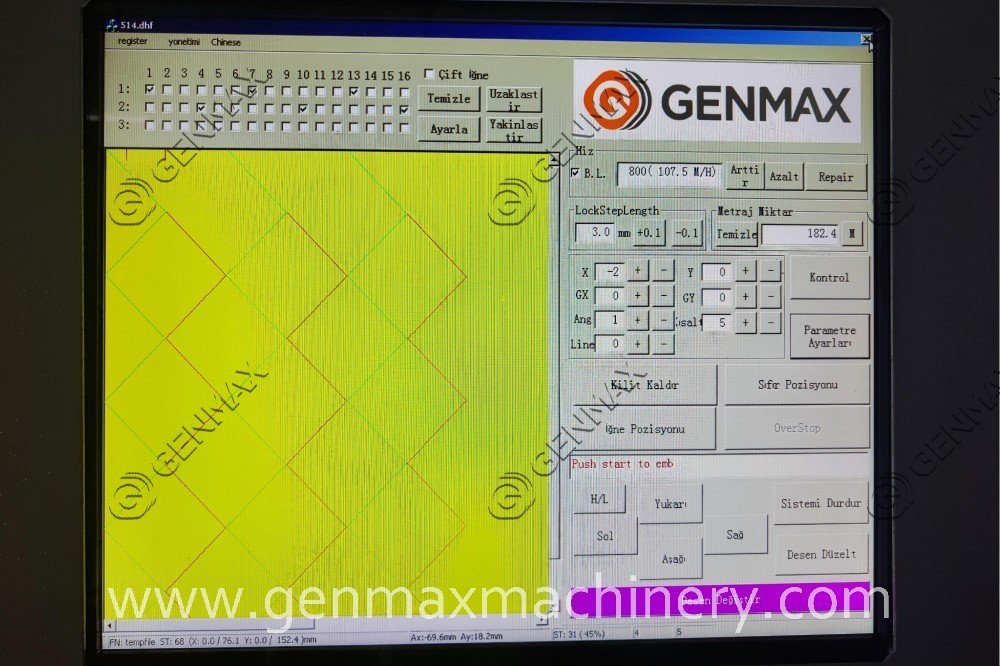

- User-friendly CAD pattern input and intuitive controls
- Built for long-term, heavy-duty industrial use
What is the warranty period for Lock Stitch Shuttle Multi Needle Quilting Machine?
We provide a standard warranty period of 12 months from the date of installation, covering any manufacturing defects and ensuring customer satisfaction.
What is the lead time for delivery after placing an order?
The lead time typically ranges from 30 to 90 days, depending on the model and order specifications. We will provide an estimated delivery date upon order confirmation.
Do you provide after-sales support?
Yes, we offer extensive after-sales support, including technical assistance, maintenance services, and access to spare parts to ensure the longevity of your Tape Edge Machines.
Can you provide references or testimonials from previous customers?
Absolutely! We can provide references and testimonials from our satisfied customers to demonstrate the reliability and performance of our Tape Edge Machines.
